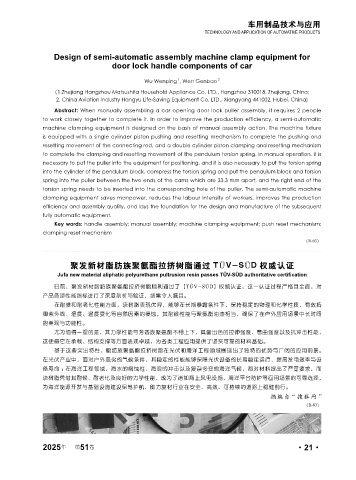

Page 67 - 《橡塑技术与装备》2025年2期

车用制品技术与应用
TECHNOLOGY AND APPLICATION OF AUTOMATIVE PRODUCTS

Design of semi-automatic assembly machine clamp equipment for
door lock handle components of car

1
Wu Wenping , Wen Genbao 2
（1.Zhejiang Hangzhou Matsushita Household Appliance Co. LTD., Hangzhou 310018, Zhejiang, China;
2. China Aviation Industry Hangyu Life-Saving Equipment Co. LTD., Xiangyang 441002, Hubei, China)
Abstract: When manually assembling a car opening door lock puller assembly, it requires 2 people
to work closely together to complete it. In order to improve the production efficiency, a semi-automatic
machine clamping equipment is designed on the basis of manual assembly action. The machine fixture
is equipped with a single cylinder piston pushing and resetting mechanism to complete the pushing and
resetting movement of the connecting rod, and a double cylinder piston clamping and resetting mechanism
to complete the clamping and resetting movement of the pendulum torsion spring. In manual operation, it is
necessary to put the puller into the equipment for positioning, and it is also necessary to put the torsion spring
into the cylinder of the pendulum block, compress the torsion spring and put the pendulum block and torsion
spring into the puller between the two ends of the cams which are 33.3 mm apart, and the right end of the
torsion spring needs to be inserted into the corresponding hole of the puller. The semi-automatic machine
clamping equipment saves manpower, reduces the labour intensity of workers, improves the production
efficiency and assembly quality, and lays the foundation for the design and manufacture of the subsequent
fully automatic equipment.
Key words: handle assembly; manual assembly; machine clamping equipment; push reset mechanism;
clamping reset mechanism
（R-03）

聚发新材脂肪族聚氨酯拉挤树脂通过 TÜV-SÜD 权威认证
Jufa new material aliphatic polyurethane pultrusion resin passes TÜV-SÜD authoritative certification

日前，聚发新材脂肪族聚氨酯拉挤树脂顺利通过了【TÜV-SÜD】 权威认证，这一认证过程严格且全面，对
产品各项性能指标进行了深度剖析与验证，结果令人瞩目。
在耐候和耐老化性能方面，该树脂表现优异，能够在长期暴露条件下，保持稳定的物理和化学性质，有效抵
御紫外线、湿度、温度变化等自然因素的侵蚀，其耐候性能与聚氨酯油漆相当，确保了在户外应用场景中长时间
的美观与功能性。
尤为值得一提的是，其力学性能与芳香族聚氨酯不相上下，具备出色的拉伸强度、弯曲强度以及抗冲击性能，
这使得它在承载、结构支撑等方面表现卓越，为各类工程应用提供了坚实可靠的材料基础。
基于这些突出特性，脂肪族聚氨酯拉挤树脂在光伏和海洋工程领域展现出了独特的优势与广阔的应用前景。
在光伏产业中，面对户外恶劣的气候条件，其稳定的性能能够保障光伏设备的长期稳定运行，提高发电效率与设
备寿命 ；在海洋工程领域，海水的腐蚀性、海浪的冲击以及复杂多变的海洋气候，都对材料提出了严苛要求，而
该树脂凭借其耐候、耐老化及良好的力学性能，成为了诸如海上风电设施、海洋平台防护等应用场景的可靠选择，
为海洋能源开发与基础设施建设保驾护航，助力复材行业在安全、高效、可持续的道路上稳健前行。
摘编自 “ 搜狐网 ”
（R-03）
