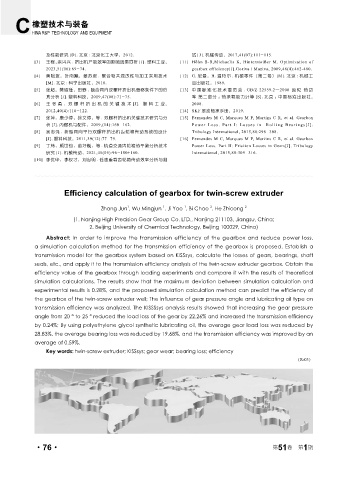

Page 126 - 《橡塑技术与装备》2025年1月

橡塑技术与装备
HINA R&P TECHNOLOGY AND EQUIPMENT

及性能研究 [D]. 北京 : 北京化工大学，2012. 试 [J]. 机械传动，2017,41(07):111-115.
[3] 王程，余兴兴 . 挤出机产能效率的影响因素简析 [J]. 塑料工业， [11] Höhn B-R,Michaelis K, Hinterstoißer M. Optimization of
2023,51(06):69-74. gearbox efficiency[J].Goriva i Maziva, 2009,48(4):462-480.
[4] 黄险波，叶南飚，姜苏俊 . 聚合物共混改性与加工实用技术 [12] G. 尼曼，H. 温特尔 . 机械零件（第二卷）[M]. 北京 : 机械工
[M]. 北京 : 科学出版社，2018. 业出版社，1989.
[5] 张超，樊瑜瑾，田野 . 啮合同向双螺杆挤出机滑移条件下的仿 [13] 中国标准化技术委员会 . GB/Z 22559.2—2008 齿轮 热功
真分析 [J]. 塑料科技，2019,47(08):71-75. 率 第二部分 ：热承载能力计算 [S]. 北京 ：中国标准出版社，
[6] 王多勇 . 双螺杆挤出机的关键技术 [J]. 塑料工业， 2008.
2012,40(4):118-122. [14] SKF 滚动轴承手册，2019.
[7] 张坤，康少博，徐文博，等 . 双螺杆挤出机关键技术研究与分 [15] Fernandes M C, Marques M P, Martins C R, et al. Gearbox
析 [J]. 内燃机与配件，2019,(14):160-162. Power Loss. Part I: Losses in Rolling Bearings[J].
[8] 吴志强 . 新型同向平行双螺杆挤出机齿轮箱传动系统的设计 Tribology International, 2015,88:298-308.
[J]. 塑料科技，2011,39(12):77-79. [16] Fernandes M C, Marques M P, Martins C R, et al. Gearbox
[9] 丁炜，颜世铛，苗圩巍，等 . 轨道交通齿轮箱热平衡分析技术 Power Loss. Part II: Friction Losses in Gears[J]. Tribology
研究 [J]. 机械传动，2021,45(05):96-100+160. International, 2015,88:309-316.
[10] 李优华，李权才，刘忠明 . 低速重载齿轮箱传动效率分析与测

Efficiency calculation of gearbox for twin-screw extruder

1
1
1
Zhang Jun , Wu Mingjun , Ji Yao , Bi Chao , He Zhicong 2
2
(1. Nanjing High Precision Gear Group Co. LTD., Nanjing 211103, Jiangsu, China;
2. Beijing University of Chemical Technology, Beijing 100029, China)
Abstract: In order to improve the transmission efficiency of the gearbox and reduce power loss,
a simulation calculation method for the transmission efficiency of the gearbox is proposed. Establish a
transmission model for the gearbox system based on KISSsys, calculate the losses of gears, bearings, shaft
seals, etc., and apply it to the transmission efficiency analysis of the twin-screw extruder gearbox. Obtain the
efficiency value of the gearbox through loading experiments and compare it with the results of theoretical
simulation calculations. The results show that the maximum deviation between simulation calculation and
experimental results is 0.28%, and the proposed simulation calculation method can predict the efficiency of
the gearbox of the twin-screw extruder well; The influence of gear pressure angle and lubricating oil type on
transmission efficiency was analyzed. The KISSSsys analysis results showed that increasing the gear pressure
angle from 20 ° to 25 ° reduced the load loss of the gear by 22.26% and increased the transmission efficiency
by 0.24%; By using polyethylene glycol synthetic lubricating oil, the average gear load loss was reduced by
28.83%, the average bearing loss was reduced by 19.68%, and the transmission efficiency was improved by an
average of 0.59%.
Key words: twin-screw extruder; KISSsys; gear wear; bearing loss; efficiency
